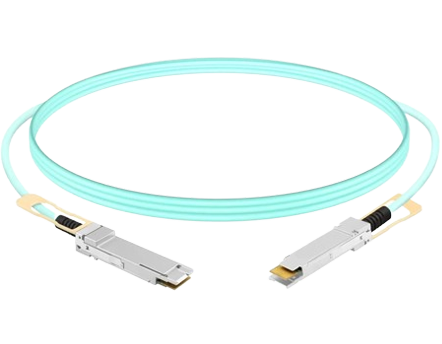

RAYCOMM-TECH-Active Optical Cable
| 400G QSFP-DD | |||||
| Part No. | Application | Temp | Distance | TX | RX |
| CD400-AxxxM | 400G SR8 AOC | 0~70℃ | 1~100m | 850nm VCSEL | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| CD400-AxxxM-2Q | 400G QSFP-DD to 2*200G QSFP56 AOC | 0~70℃ | 1~70m | 850nm VCSEL | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| CD400-AxxxM-4Q | 400G QSFP-DD to 4x100G QSFP56 AOC | 0~70℃ | 1~20m | 850nm VCSEL | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| CD400-AxxxM-O | 400G QSFP-DD to OSFP112 RHS AOC | 0~70℃ | 1~500m | SIP | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| 400G QSFP112 | |||||
| Part No. | Application | Temp | Distance | TX | RX |
| CQ400-AxxxM-O | 400G QSFP112-OSFP112 RHS AOC | 0~70℃ | 1~100m | SIP | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| 200G QSFP56 | |||||
| Part No. | Application | Temp | Distance | TX | RX |
| CQ200-AxxxM | 200G SR4 AOC | 0~70℃ | 1~100m | 850nm VCSEL | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| CQ200-AxxxM-2Q1H | 200G QSFP56 to 2x100G QSFP56 AOC | 0~70℃ | 1~20m | 850nm VCSEL | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| 200G QSFP-DD AOC | |||||
| Part No. | Application | Temp | Distance | TX | RX |
| CD200-AxxxM | 200G SR8 AOC | 0~70℃ | 1~100m | 850nm VCSEL | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| CD200-AxxxM-2Q | 200G QDD to 2x100G QSFP28 AOC | 0~70℃ | 1~100m | 850nm VCSEL | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| CD200-AxxxM-8P | 200G QDD to 8x25G SFP28 AOC | 0~70℃ | 1~100m | 850nm VCSEL | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| 10G-100G SFP+/SFP28/QSFP+/QSFP28 AOC | |||||
| Part No. | Application | Temp | Distance | TX | RX |
| CQ100-AxxxM | 100G SR4 AOC | 0~70℃ | 1~100m | 850nm VCSEL | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| CQ100-AxxxM-4P | 100G SR4 to 4X25G SFP28 AOC | 0~70℃ | 1~100m | 850nm VCSEL | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| CQ40-AxxxM | 40G SR4 AOC | 0~70℃ | 1~300m | 850nm VCSEL | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| CQ40-AxxxM-4P | 40G SR4 to 4X10G SFP+ AOC | 0~70℃ | 1~300m | 850nm VCSEL | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| CP25-AxxxM | 25G SR SFP28 AOC | 0~70℃ | 100m | 850nm VCSEL | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| CP10-AxxxM | 10G SR SFP+ AOC | 0~70℃ | 300m | 850nm VCSEL | PIN-TIA |
| (Refer to Note3) | (Selectable) | ||||
| Note3: xxx is Distance. For example, 001 = 1 meter, 010 = 10meters, 100 = 100meters | |||||
